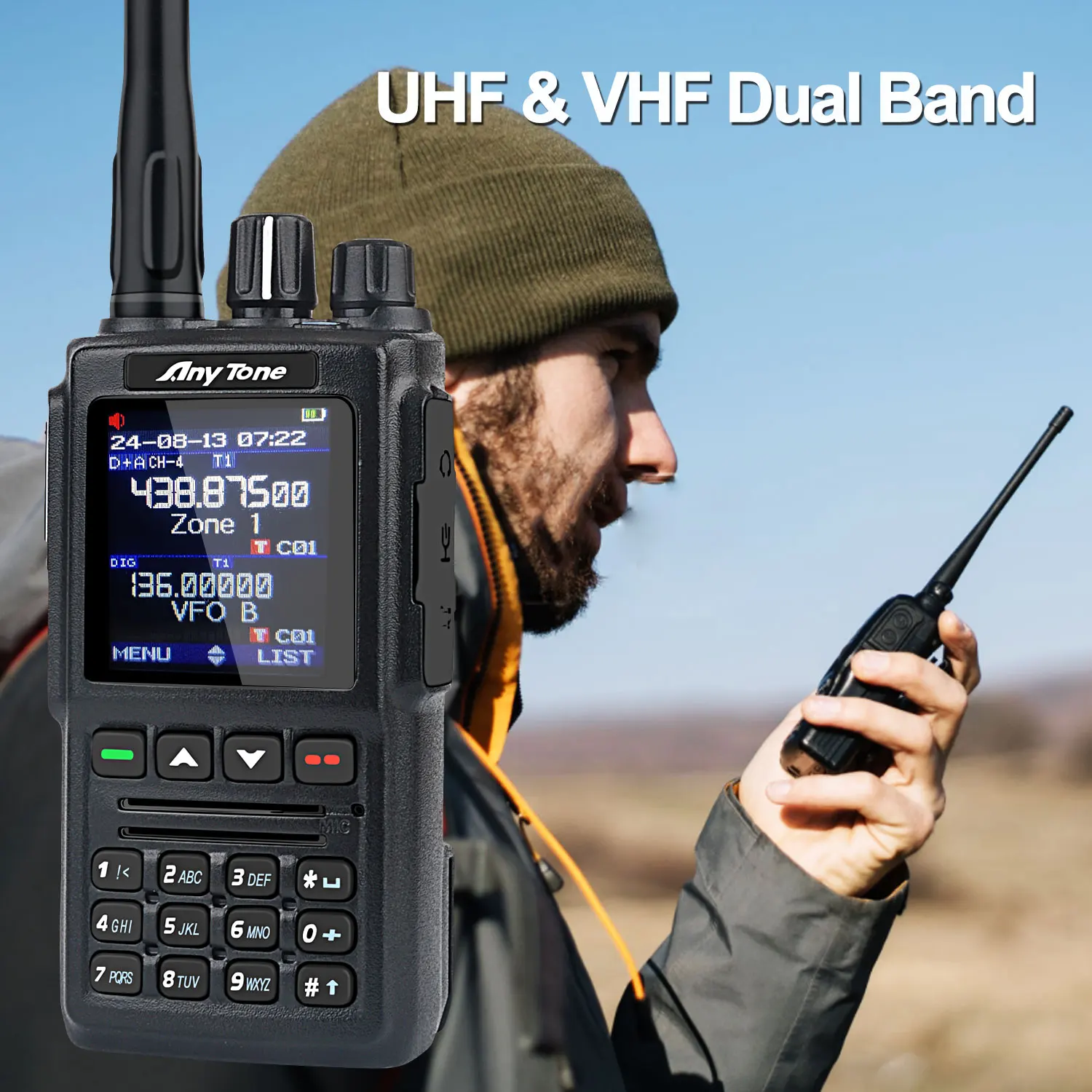

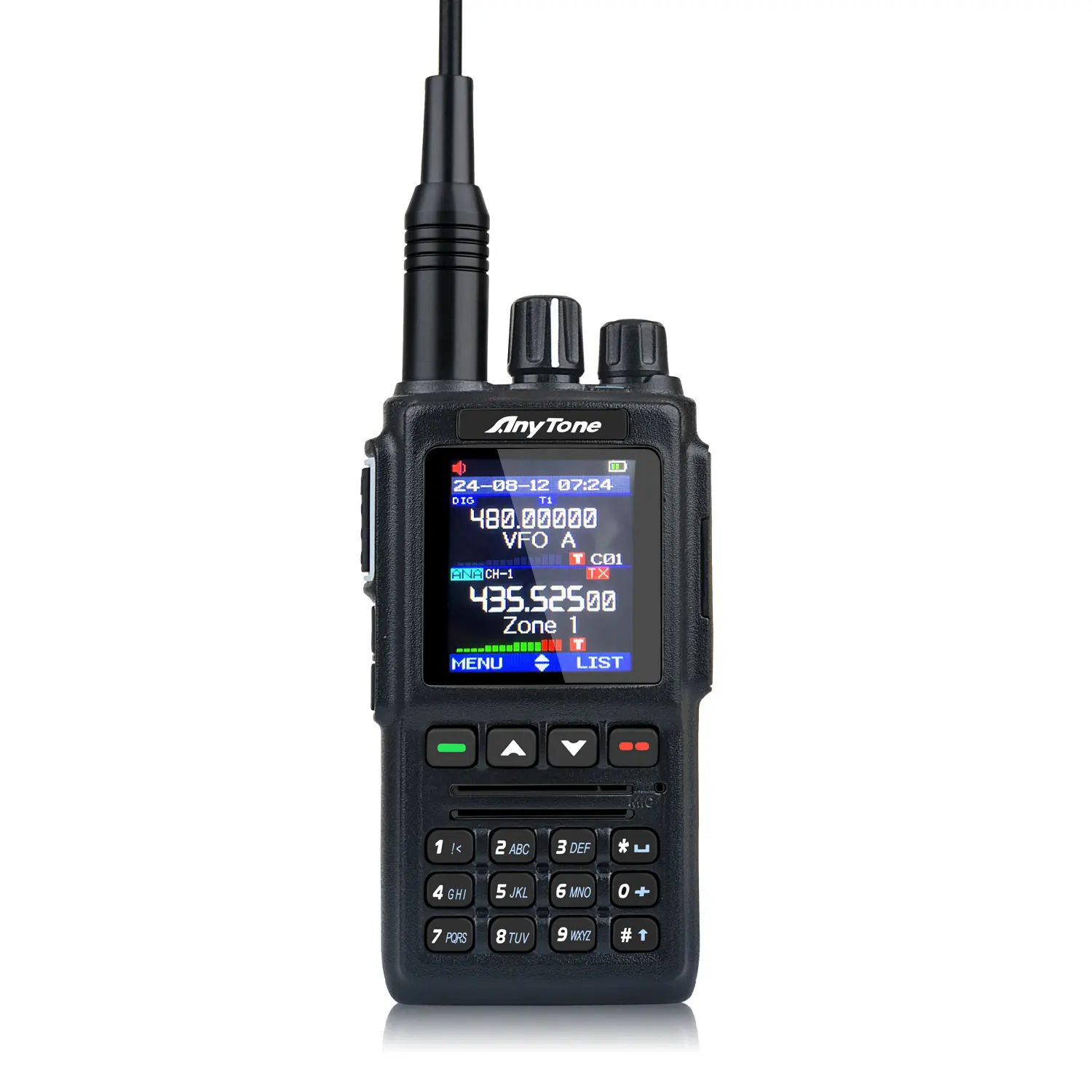

Anytone Walkie Talkie AT-D168UV AES256 Encryption DMR Digital and Analog Dual Band FM Amateur Two Way Radio with USB-C charging

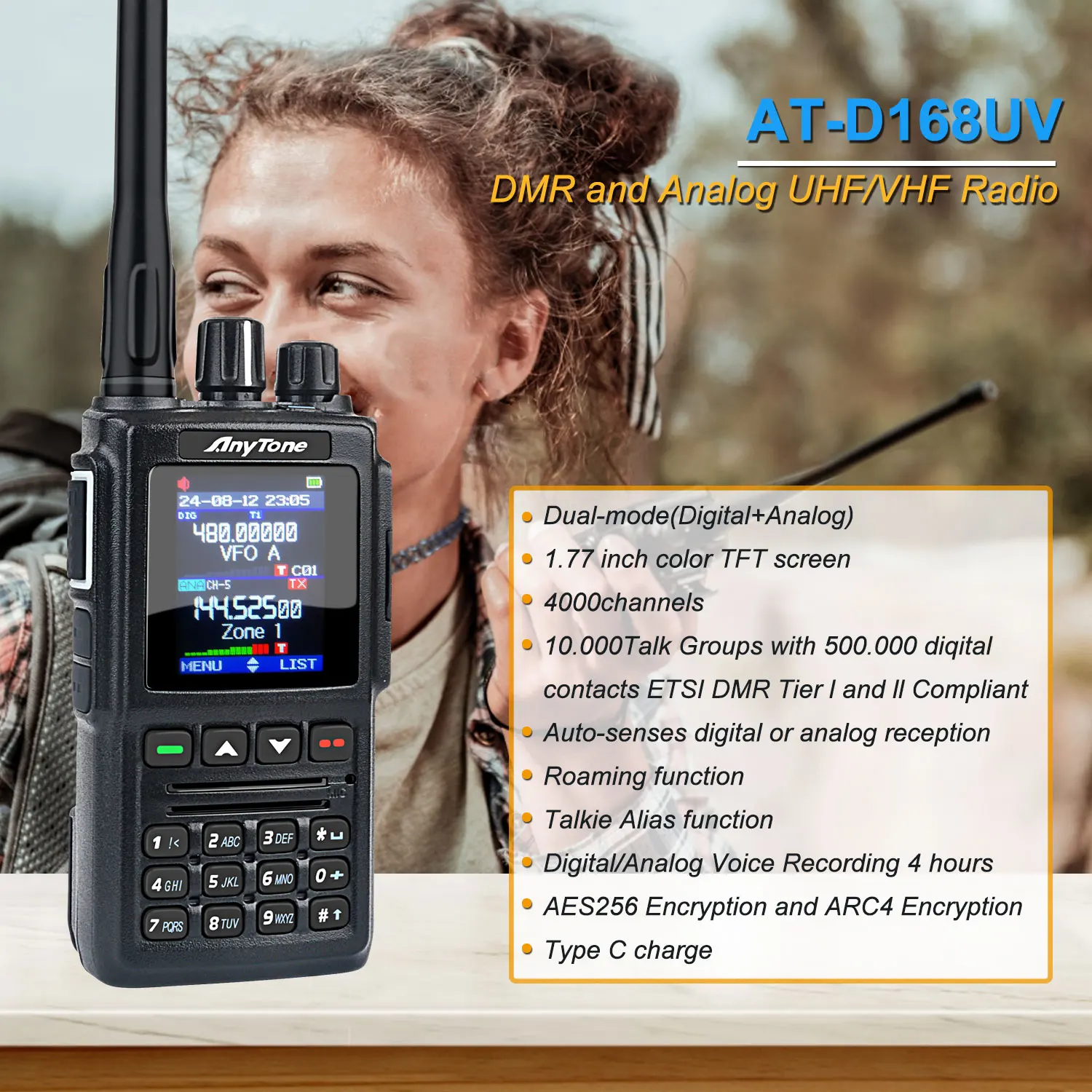

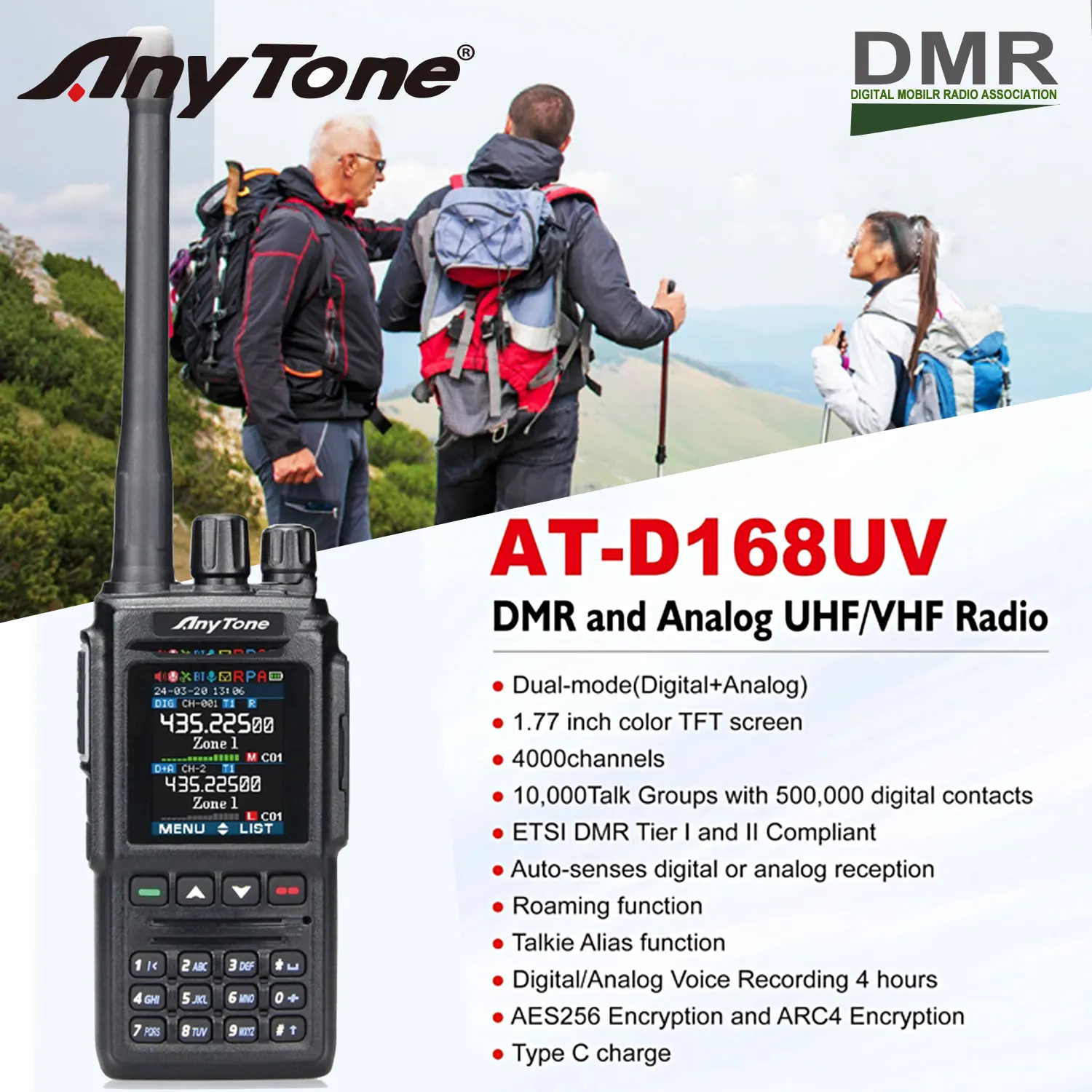

Features:

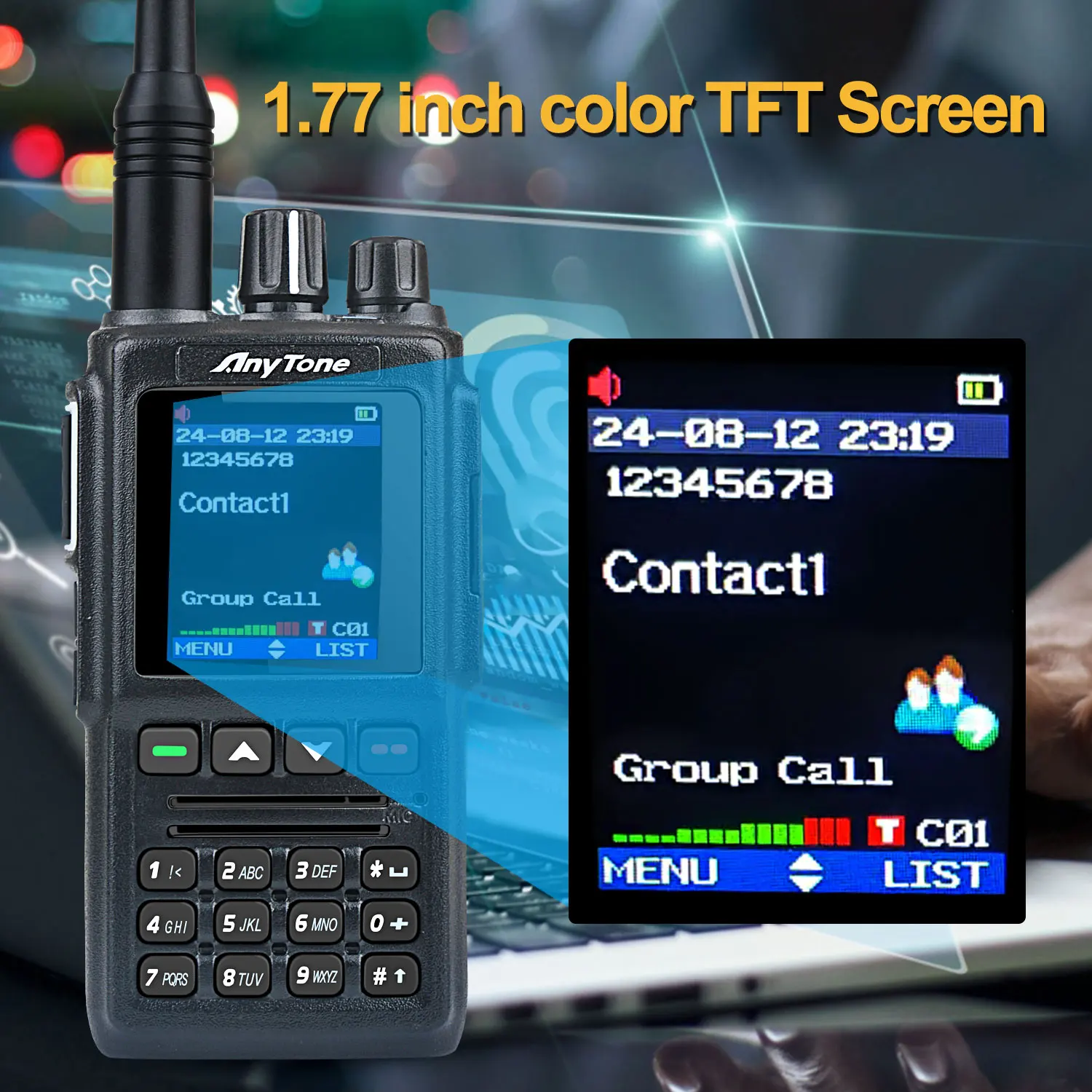

1.77 inch color TFT Screen
Dual-mode (Digital+Analog)

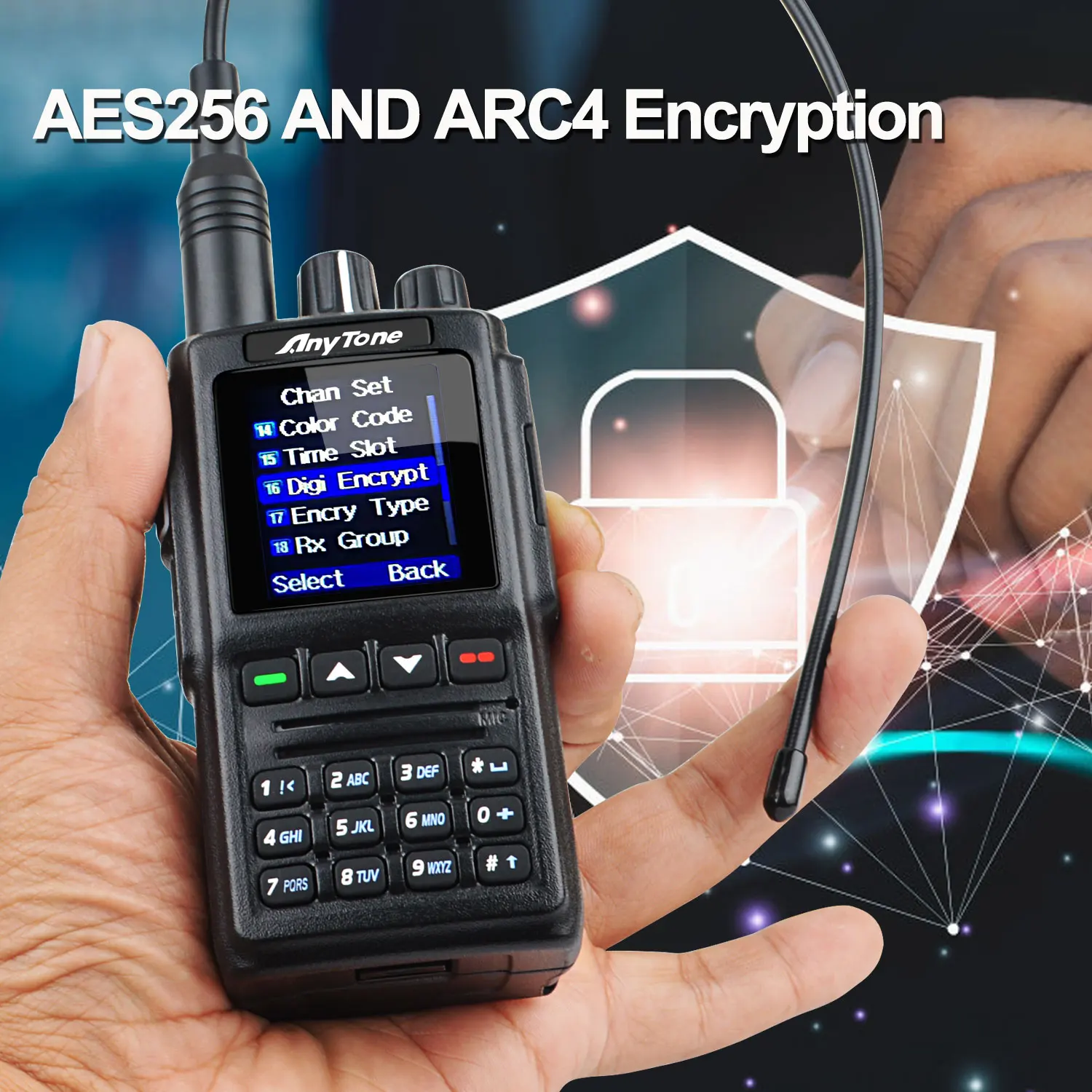

AES256 Encryption and ARC Encryption

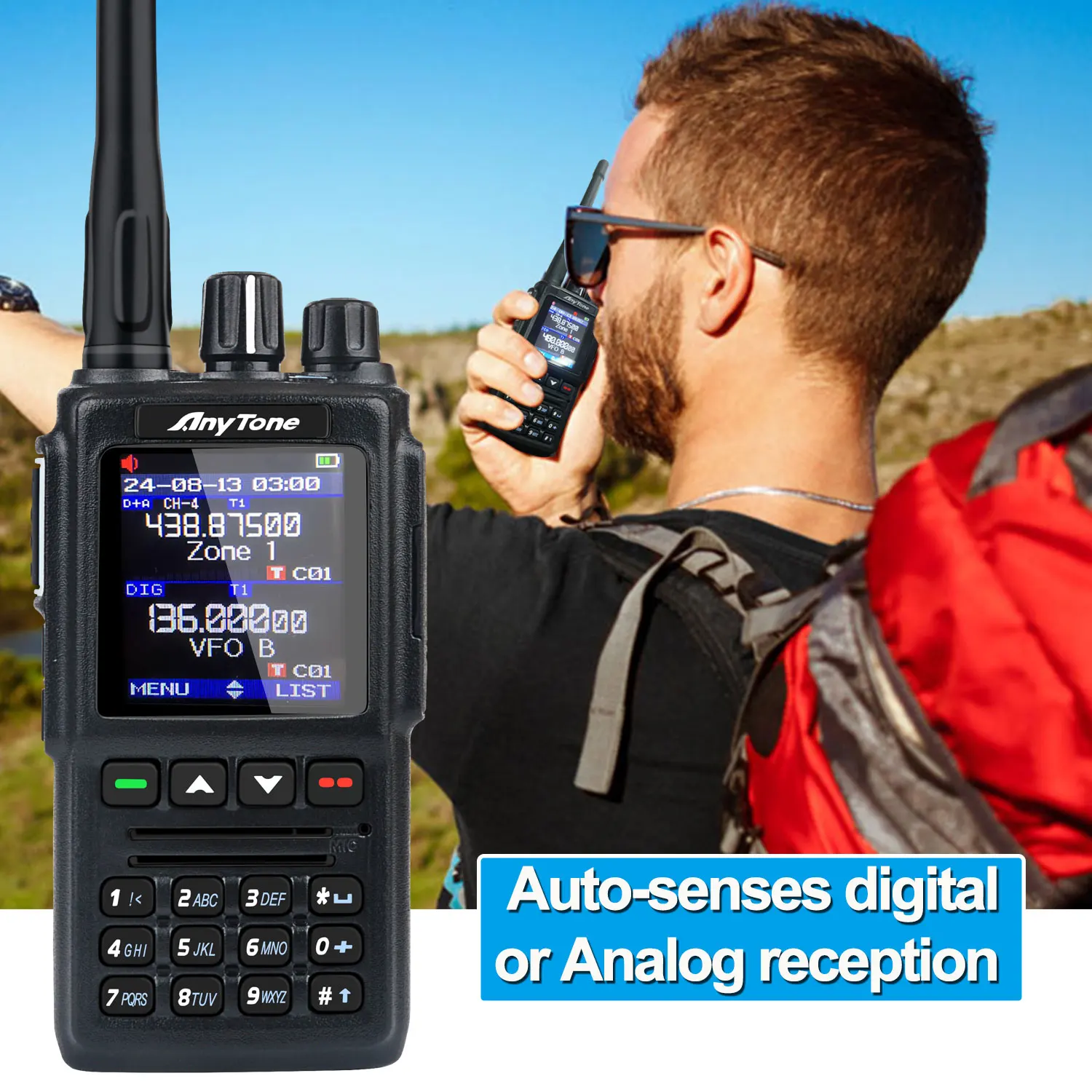

Auto-senses digital or analog reception
Digital/Analog voice recording 4 hours

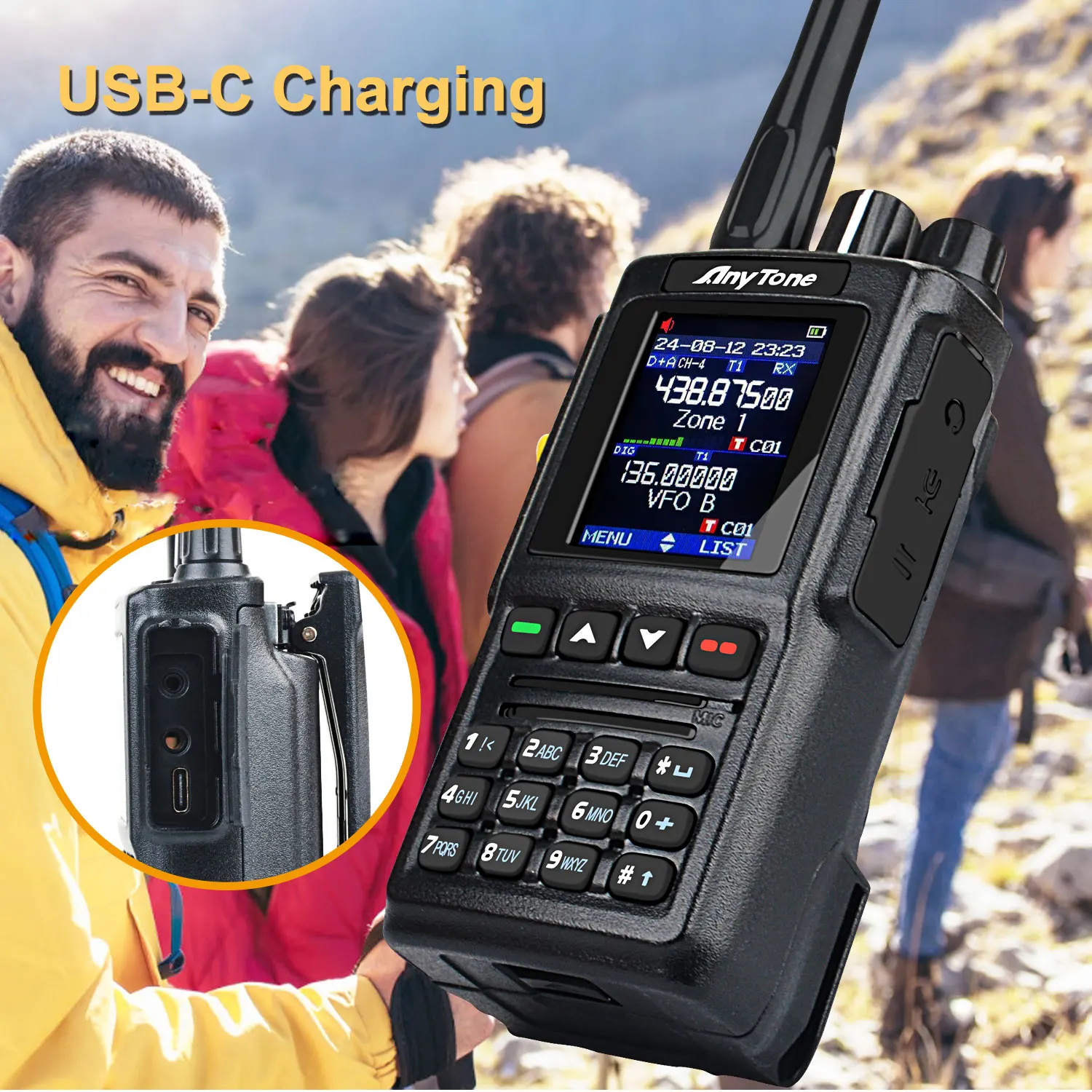

Type-C charge
4000 channels

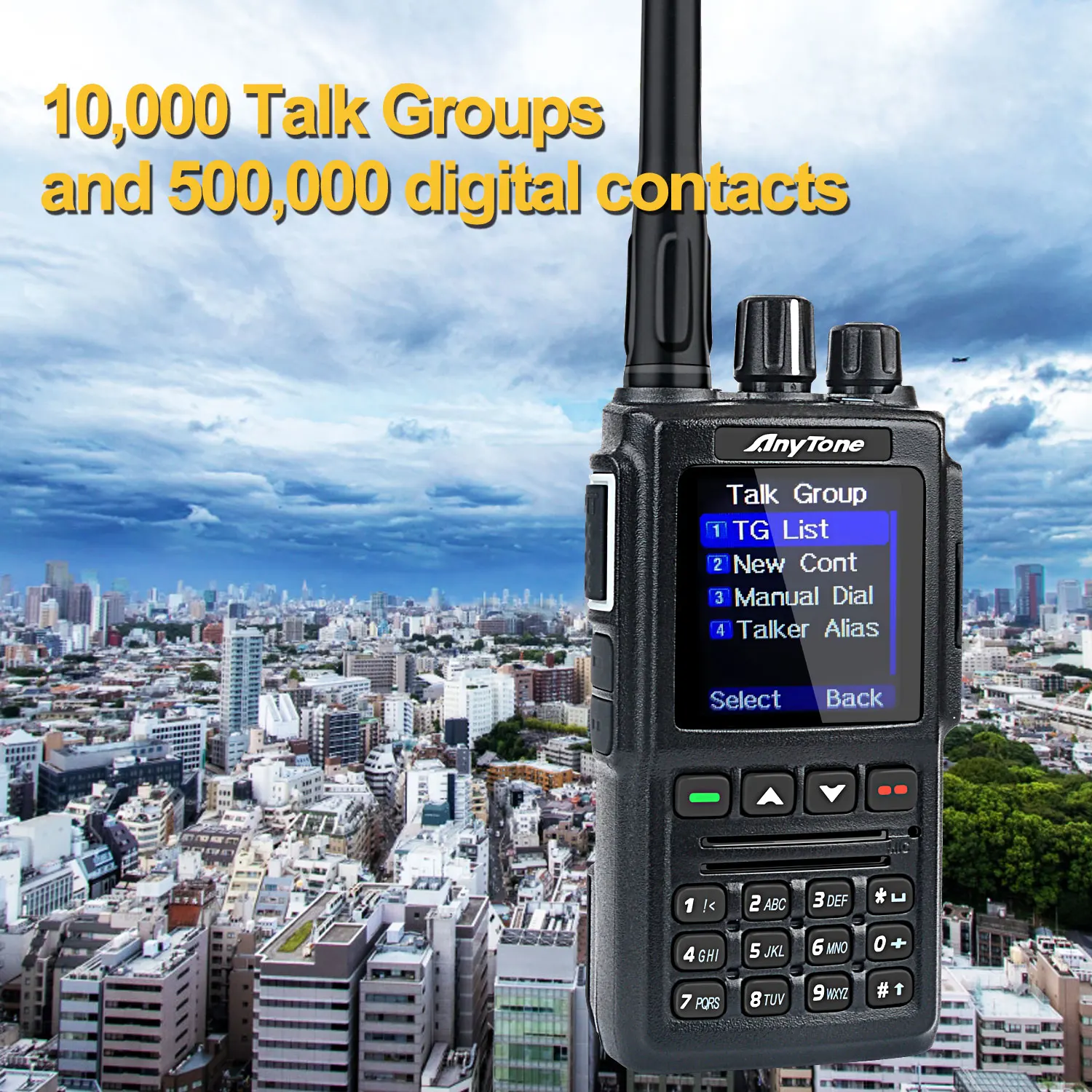

10,000 Talk groups with 500b000 digital contacts

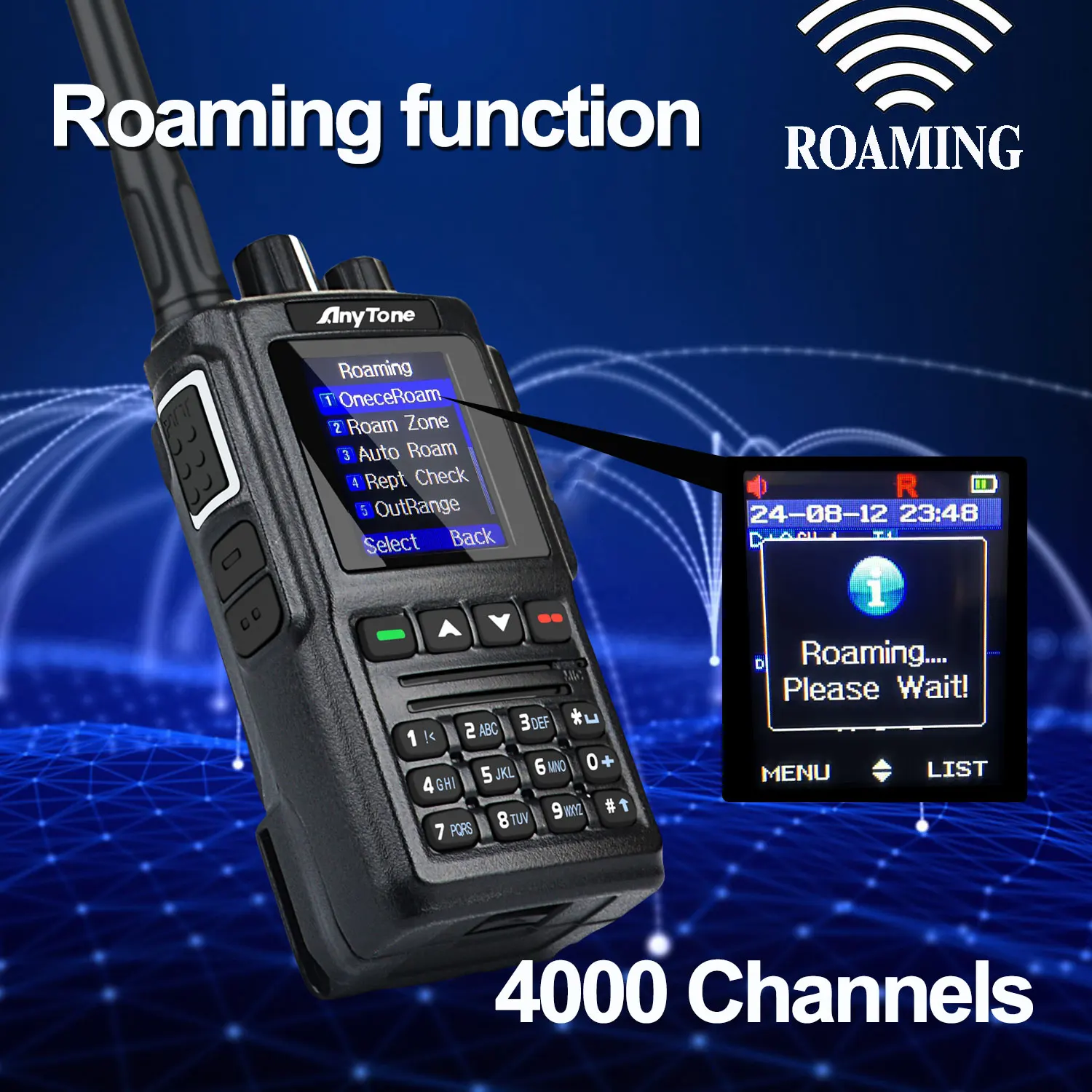

Roaming function
Talkie alias function

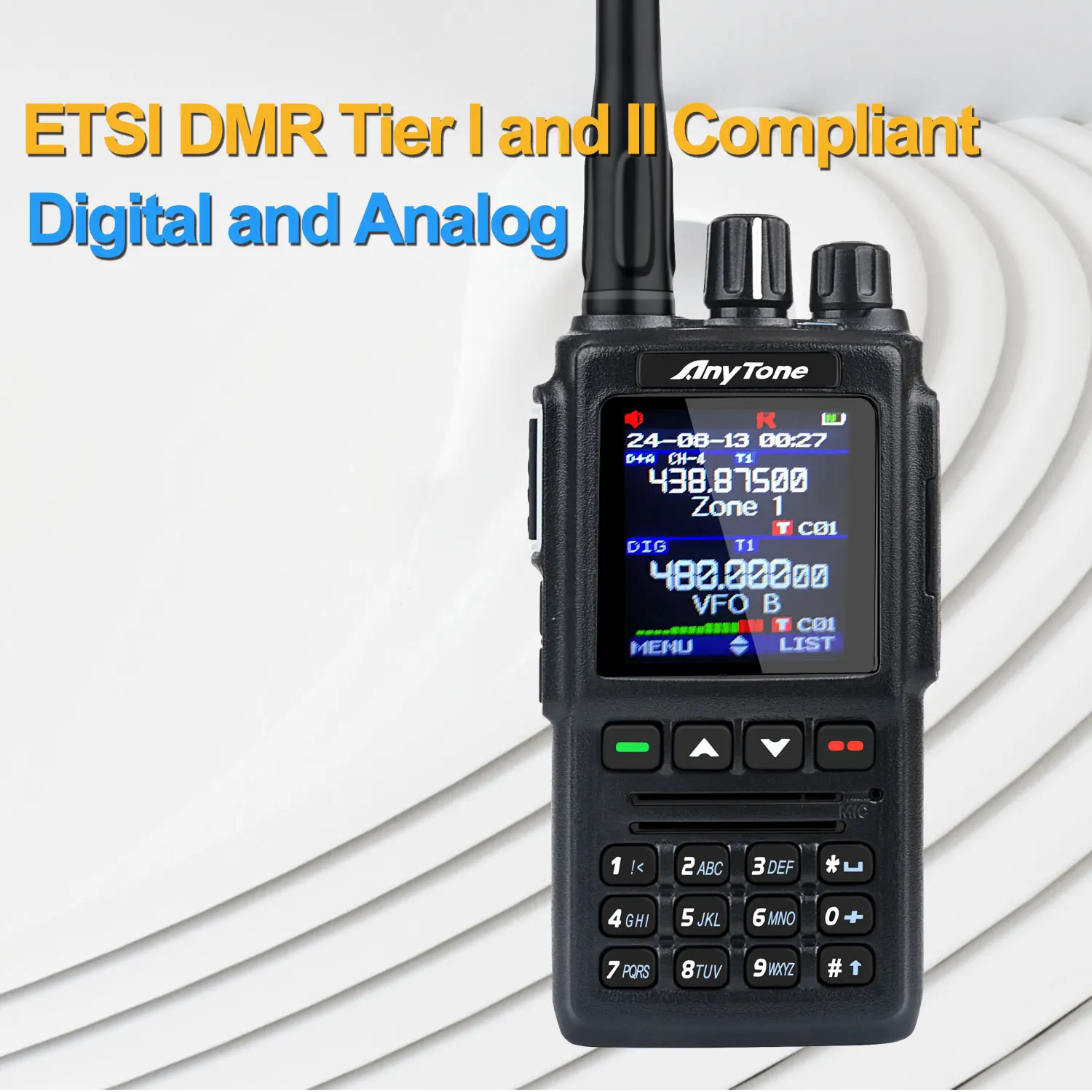

ETSI DMR Tier I and II Compliant

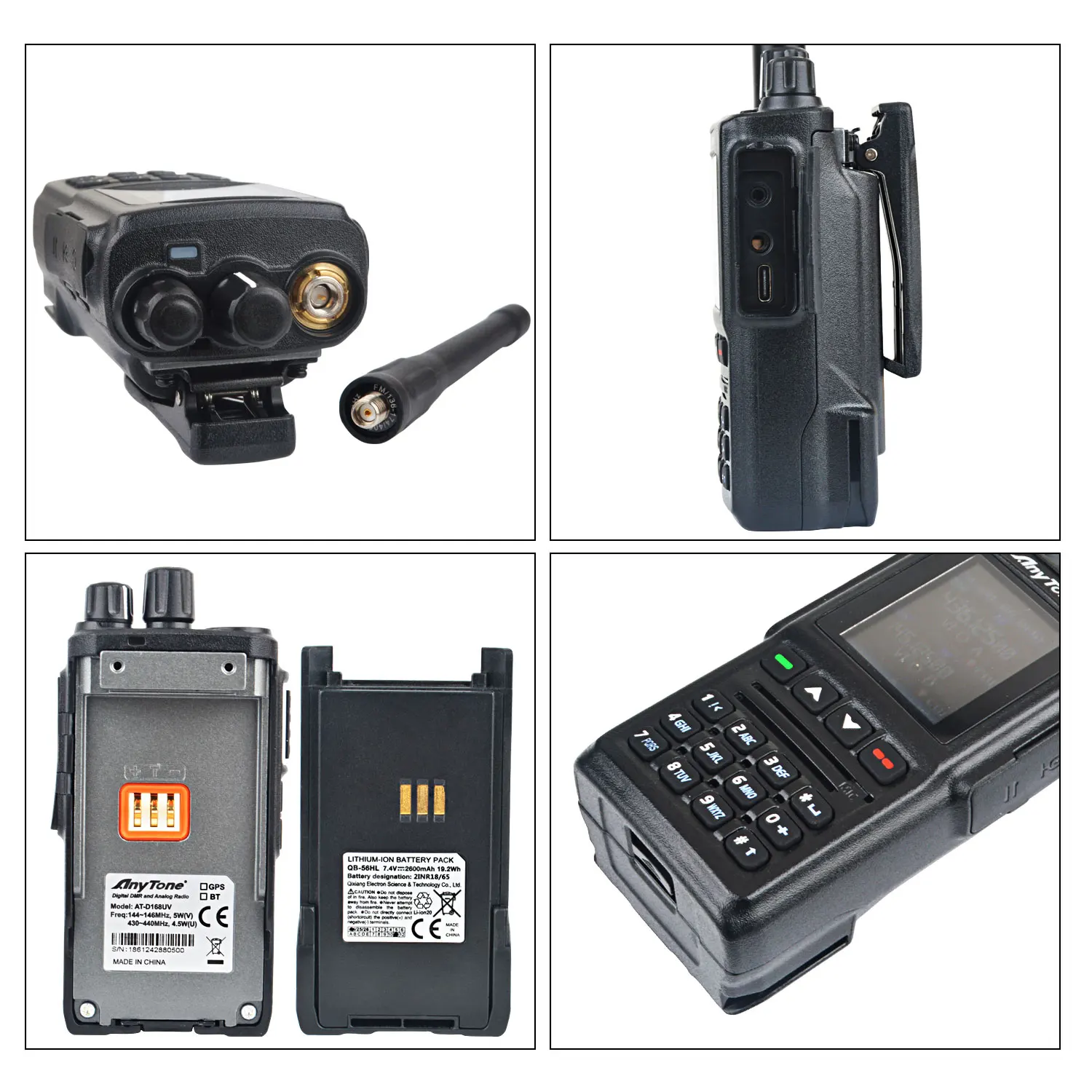

Photos:
Specifications:
|
General |
|
|
Frequency Range |
E. U: 144-146MHz,430-440MHz U.S:144-148MHz,420-450MHz |
|
Channel Capacity |
4000 channels |
|
Channel Spacing |
25KHz (Wide Band) 12.5KHz (Narrow Band) |
|
Phase-locked Step |
5KHz,6.25KHz |
|
Operation Voltage |
7.4VDC± 20% |
|
Frequency Stability |
±1.5ppm |
|
Operating Temperature |
-20°c~+50°c |
|
Size |

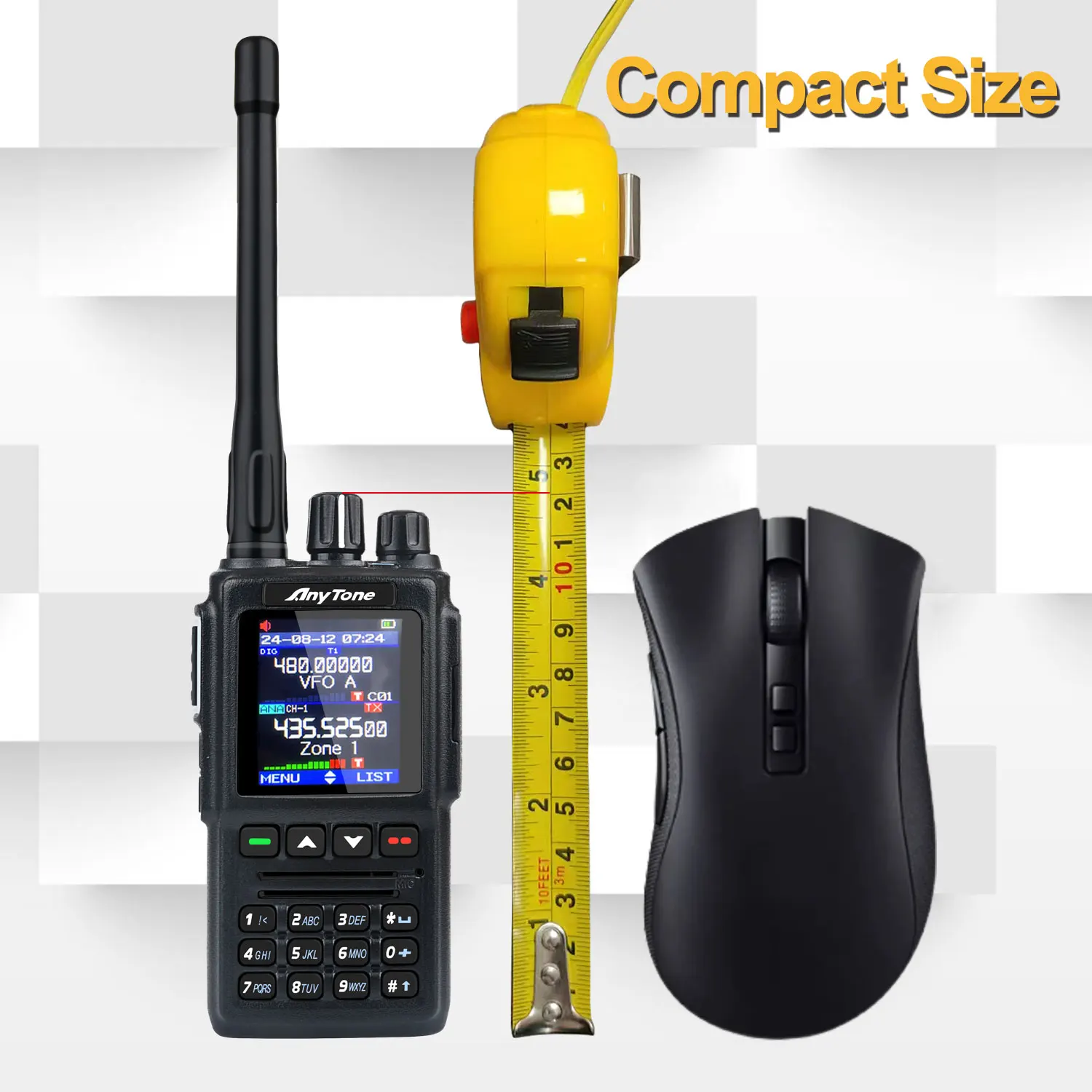

103.5*53.5*35.5mm(With battery pack) |
|
Weight |
220g (with battery pack) |
|
Transmitting Part |
|
|
Power Output |
VHF:5/2.5/1W/0.2W UHF:4.5/2.5/0.5W/0.2W |
|
Modulation limit |
±5.0KHz @25KHz (wide band) ±2.5KHz@12.5KHz(Narrow Band) |
|
Adjacent Channel Power |
≥70dB(Wide Band) ≥60dB(Narrow Band) |
|
Hum & Noise |
≥40dB(Wide Band) ≥36dB(Narrow Band) |
|
Spurious Emission |
≤-60dBc (Wide Band) ≤-60dBc(Narrow Band) |
|
4FSK Digital Modulation |
12.5Khz (data) 7K60FXD 12.5KHz (data+voice) 7K60FXE |
|
Audio Distortion |
≤5% |
|
Error Rate |
≤3% |
|
Receiving Part |
|
|
Sensitivity (12dB SINAD) |
≤0.25uV (Wide Band) ≤0.35uV （Narrow Band） |
|
Digital Sensitivity |
0.3uV/-117.4dBm(EBR5%) 0.7Uv/-110dBm (BER 1%) |
|
Adjacent Channel Selectivity |
≥65dB(Wide Band) ≥60dB(Narrow Band) |
|
Spurious Emission |
≤-57dB(Wide Band) ≤-57dB(Narrow Band) |
|
Spurious Rejection |
≥65dB(Wide Band) ≥60dB(Narrow Band) |
|
Blocking |
84dB |
|
Hum & Noise |
≥45dB(Wide Band) ≥40dB(Narrow Band) |
|
Audio Distortion |
≤5% |
|
Audio Power Output |
1000mW/16 ohm |
Package Contains:
1×AT-D168UV Dual Band DMR Radio body
1× 2500mAhRechargeable Lithium-ion Battery Pack 7.4V
1× 38cm High Gain SMA-Female Antenna
1× 12cm SMA-Female Antenna
1× AC Adapter
1× Charger Cradle
1×Type-C Cable
1× Battery Clip
1× User Manual
