Anytone AT-778UVII GMRS VOX Dual Band 136-174MHz&400-490MHz 25Watt 200Channels 2m 70cm Amateur Analog Mobile Radio Color Screen
Anytone AT-778UVII with Vox Feature is second gerneration of AT-D778UV.

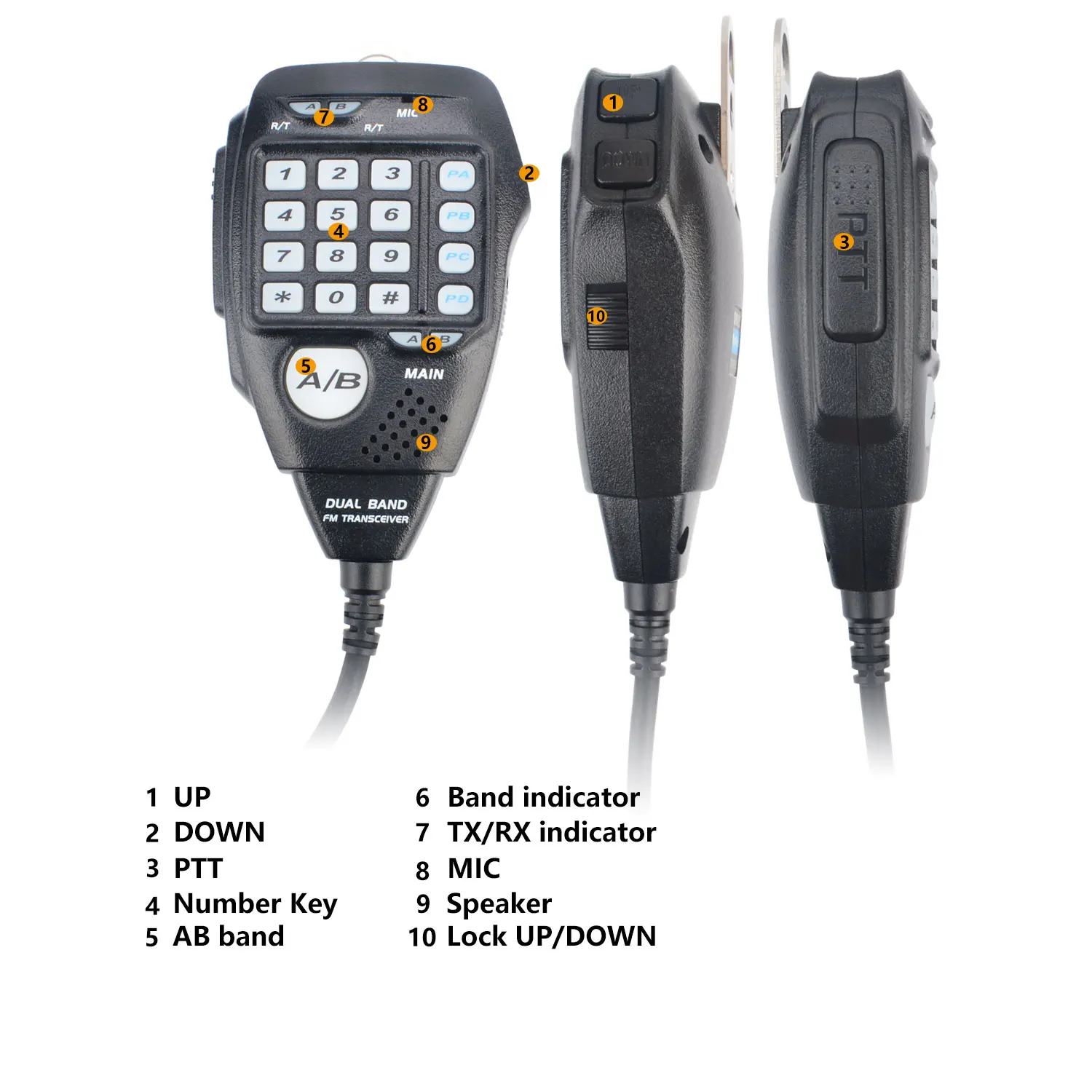

Dual band mobile transceiver AT-778UV mobile ham radio supports two frequency bands to transmit and receive; 2 meter ham radio and 70cm mobile transceiver; it can be adjusted by the number buttons on the microphone to quickly change the frequency band you need.
VOX hands free; hands-free feature frees your hands; allowing you to complete calls while driving
Feature:
1. Frequency Range: 136-174MHz & 400-490MHz (Dual Band)
2. Output power:25W/15W/5W
3. 200 channels
4. CTCSS/DCS/DTMF/2TONE/5TONE encode and decode
5. 1000/1450/1750/2100Hz Repeater Access Tone
6.ANI function/PTT ID
7.Single Call, Group Call, Selective Call and Emergency Call all are available.
8. Various scan functions including CTCSS/DCS Scan function
9. Smart menu control and PC programming control
10. Voltage level protection
11. LCD brightness control
12.180 degree rotatable TFT LCD Display (DIR )
13. Automatic Power on Function
14.Voltage Level Protection
15.Full Alloy body for heat radiation
16.1024 groups DCS Code and 52 groups CTCSS TONE frequency
17.PC software & manual programmable
18.P1~P6 Self define Keys
Specification:
|
GENERAL |
||
|
Freq Range |
Dual Band, VHF:136-174MHz & UHF 400-490MHz |
|
|
Memory Channels |
200 |
|
|
Channel Spacing |
25K(Wide Band),20K(Middle Band),12.5K(Narrow Band) |
|
|
Frequency Step |
2.5/5.0/6.25/10.0/12.5/20/25/30/50KHz |
|
|
Operating Voltage |
13.V DC ±15% |
|
|
Squelch |
Carrier/CTCSS/DCS |
|
|
Freq Stability |
±2.5ppm |
|
|
Operating Temperature |
-20°c-+60°c |
|
|

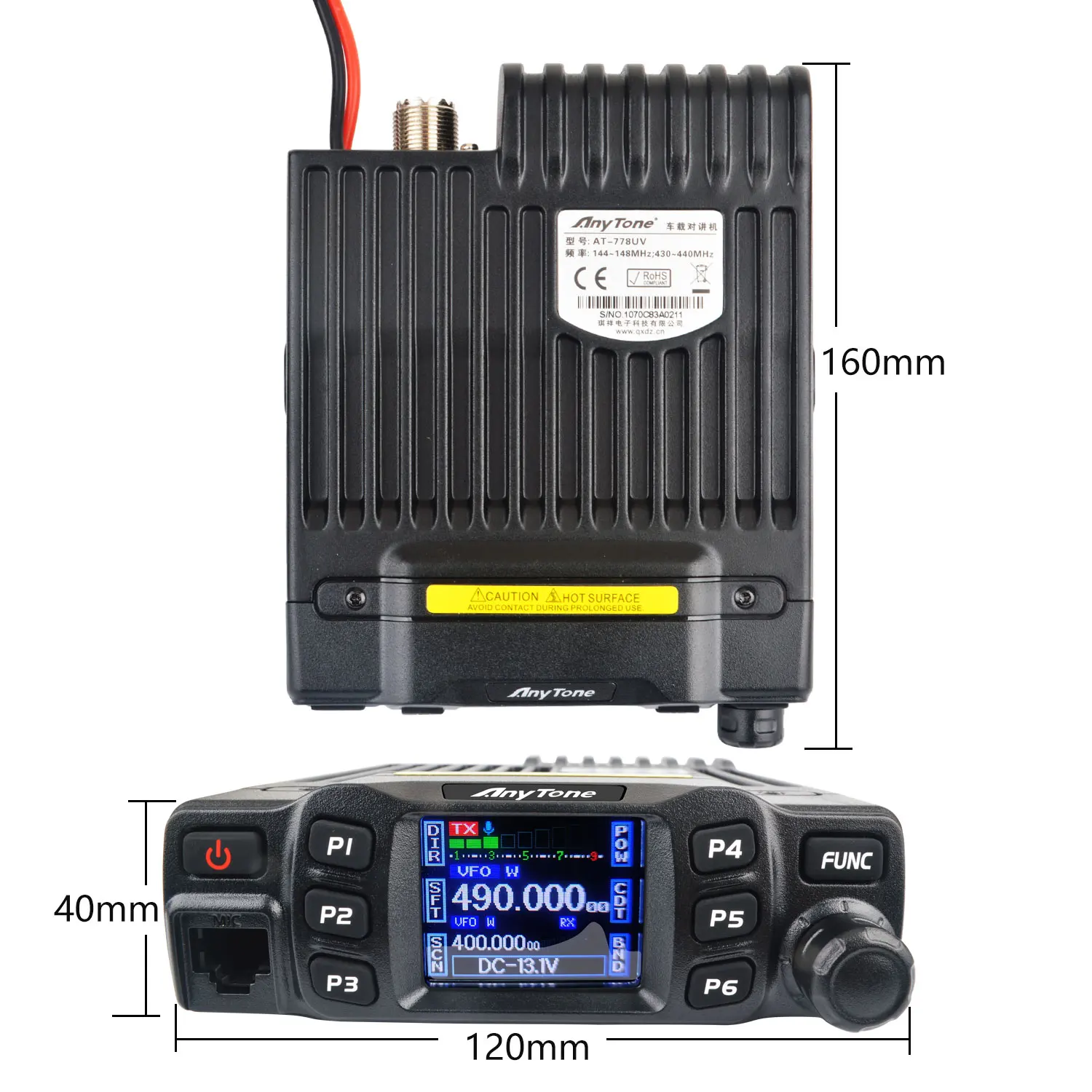

Dimensions(mm) |
124(W)*163(D)*39(H) |
|
|
Net Weight |
About 0.64kg |
|
|
Receiver |
||
|
Wide Band |
Narrow Band |
|
|
Sensitivity(12dB SINAD) |
≤0.25uV |
≤0.35uV |
|
Adjacent Channel Selectivity |
≥60dB |
≥60dB |
|
Audio Response |
+1~-3dB（0.3-3KHz） |
+1~-3dB(0.3-2.55KHz) |
|
Hum & Noise |
≥45dB |
≥40dB |
|
Audio Distortion |
≤5% |
|
|
Audio Power Output |
>2W@8 |
|
|
Transmitter |
||
|
Wide Band |
Narrow Band |
|
|
Power output |
25W/15W/5W |
|
|
Modulation |
16K F3E |
11K F3E |
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
Hum & Noise |
≥40dB |
≥36dB |
|
Spurious Emission |
≥60dB |
≥60dB |
|
Audio Response |
+1~-3dB(0.3-3KHz) |
+1~-3dB(0.3-2.55KHz) |
|
Audio Distortion |
≤5% |
|
Specifications are subject to change without notice due to Technology upgrade.

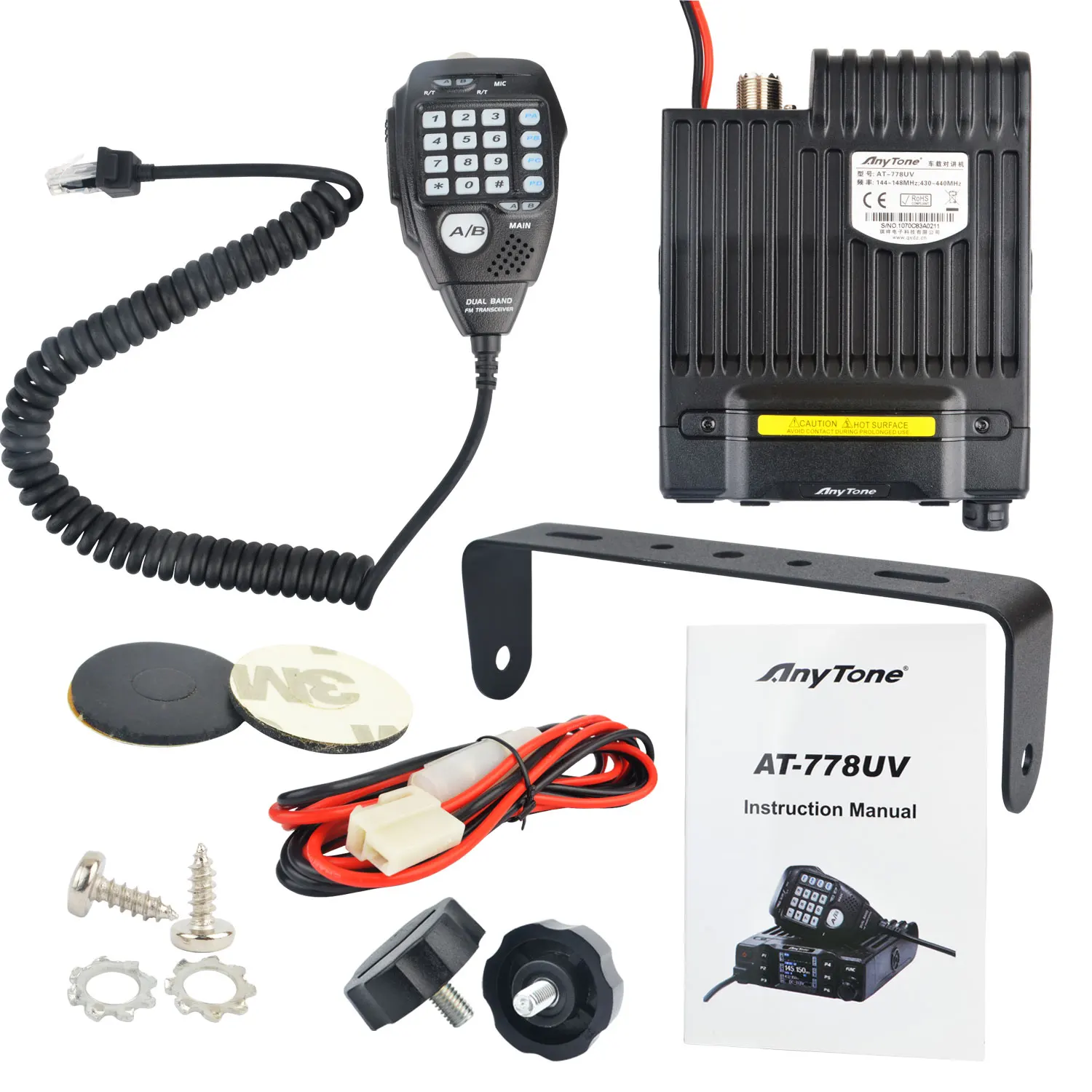

Package Contents of each Unit:
1×AT-778UV Mobile Radio Body
1× Microphone
1×Mobile Bracket
1× Screws
1× pads
1× Adjusting Screw
1× DC Power Cable with Fuse Holder
1× Non-slip Mat
1×Fuse (10A 250V)
1×USB Programming Cable (Optional)

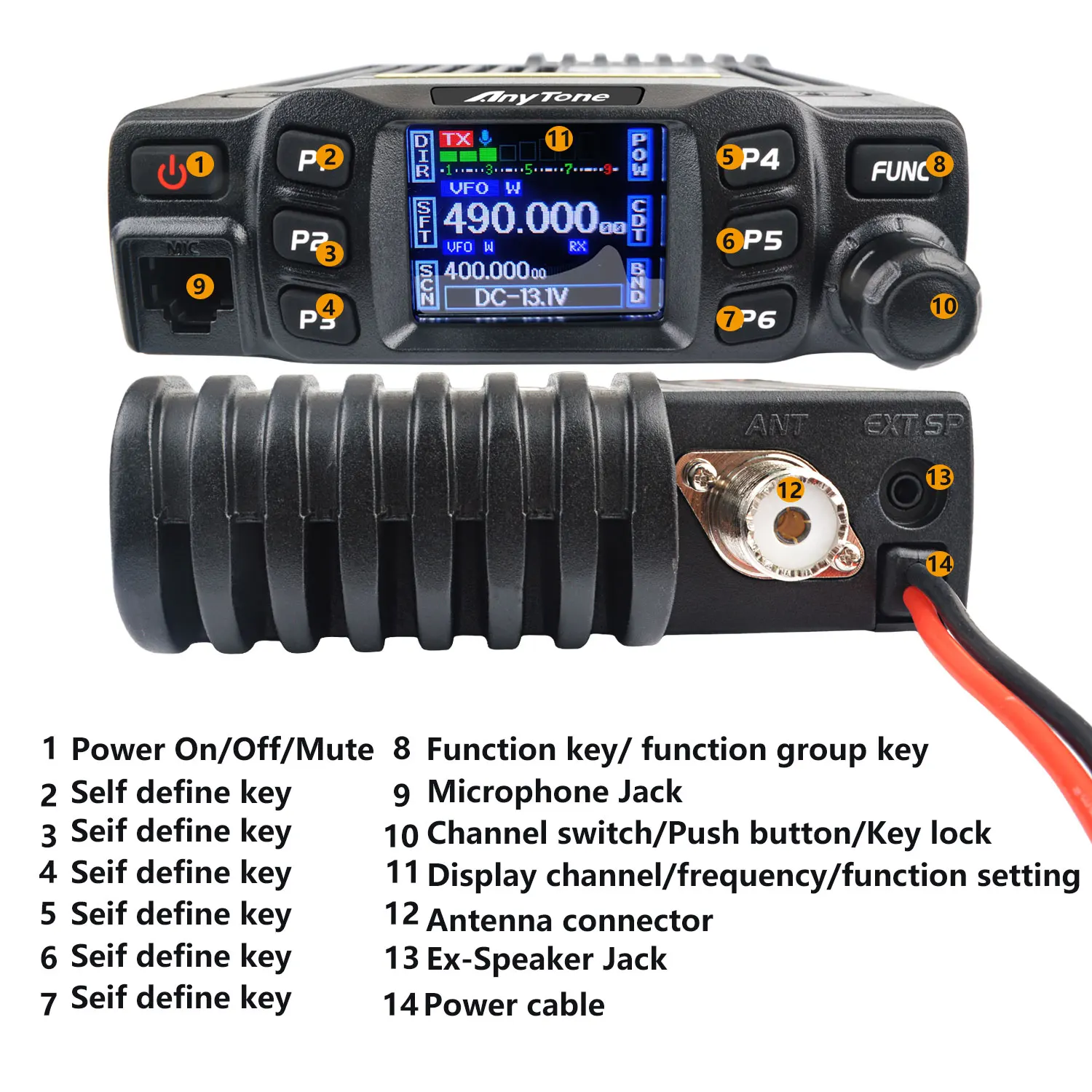

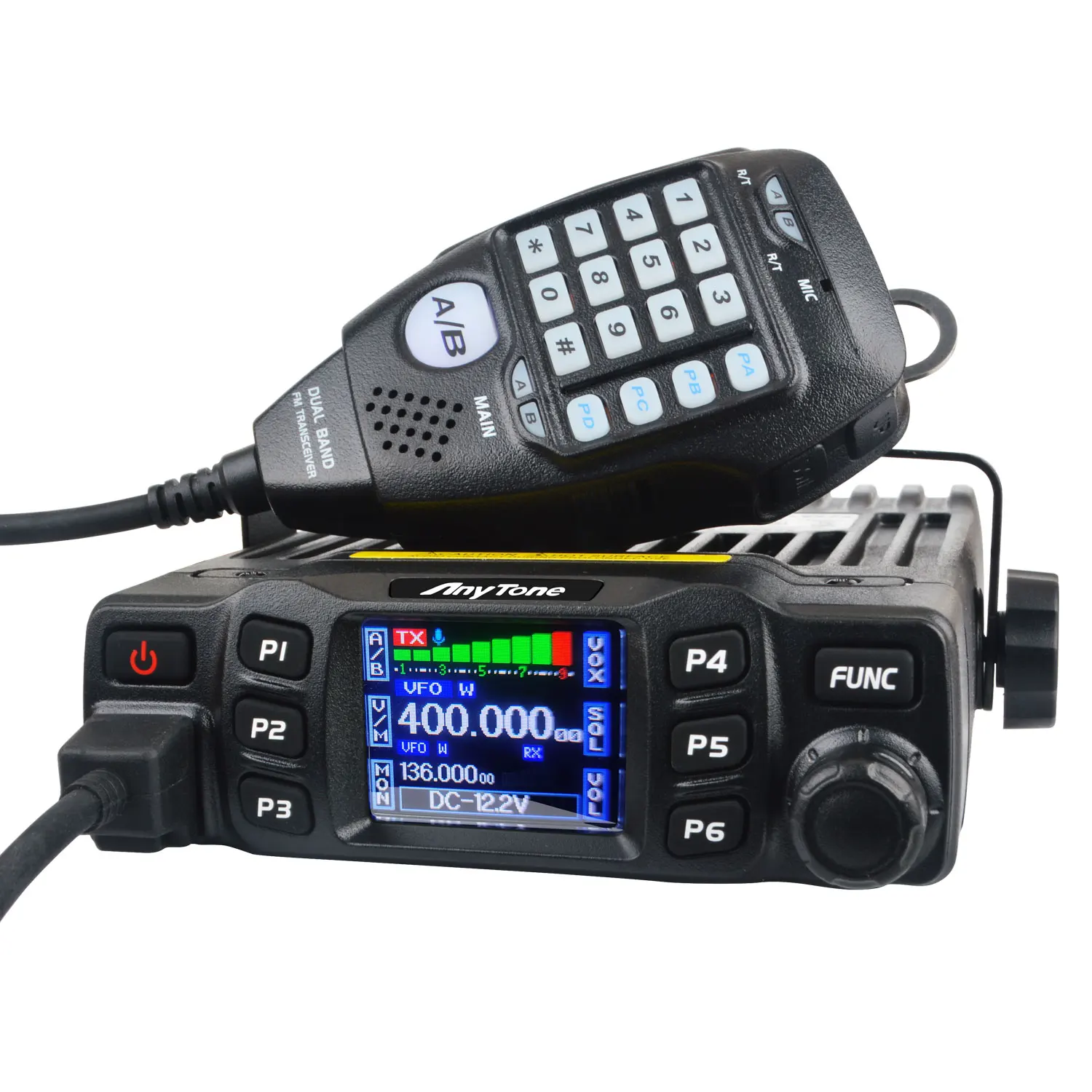

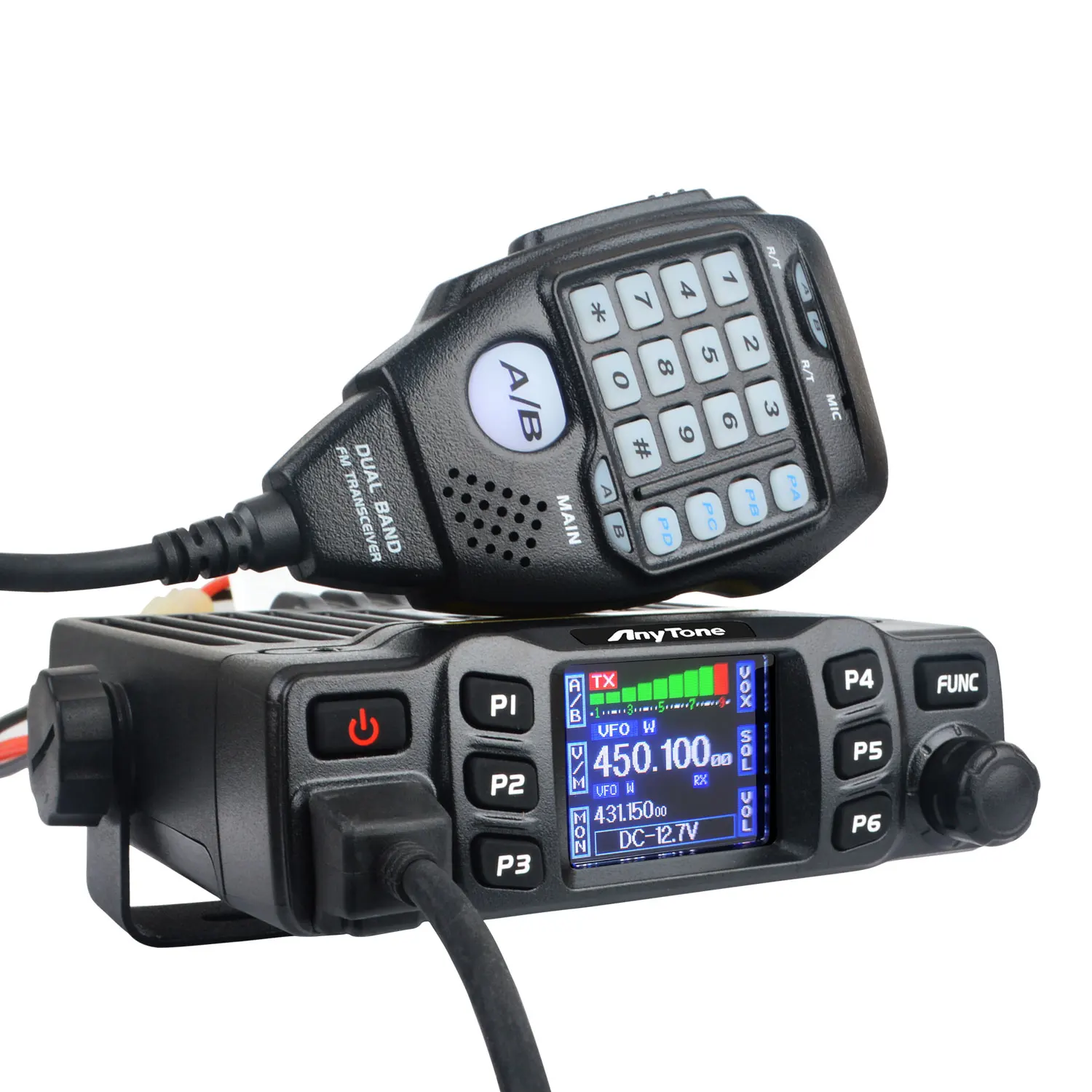

Photos:
