TYT European CB Mini Walkie Talkie FM/AM Citizen Band 11 Meters Car Radio 4W 40Channels 26.96500-27.40500MHz 27MHz Mobile Transceiver

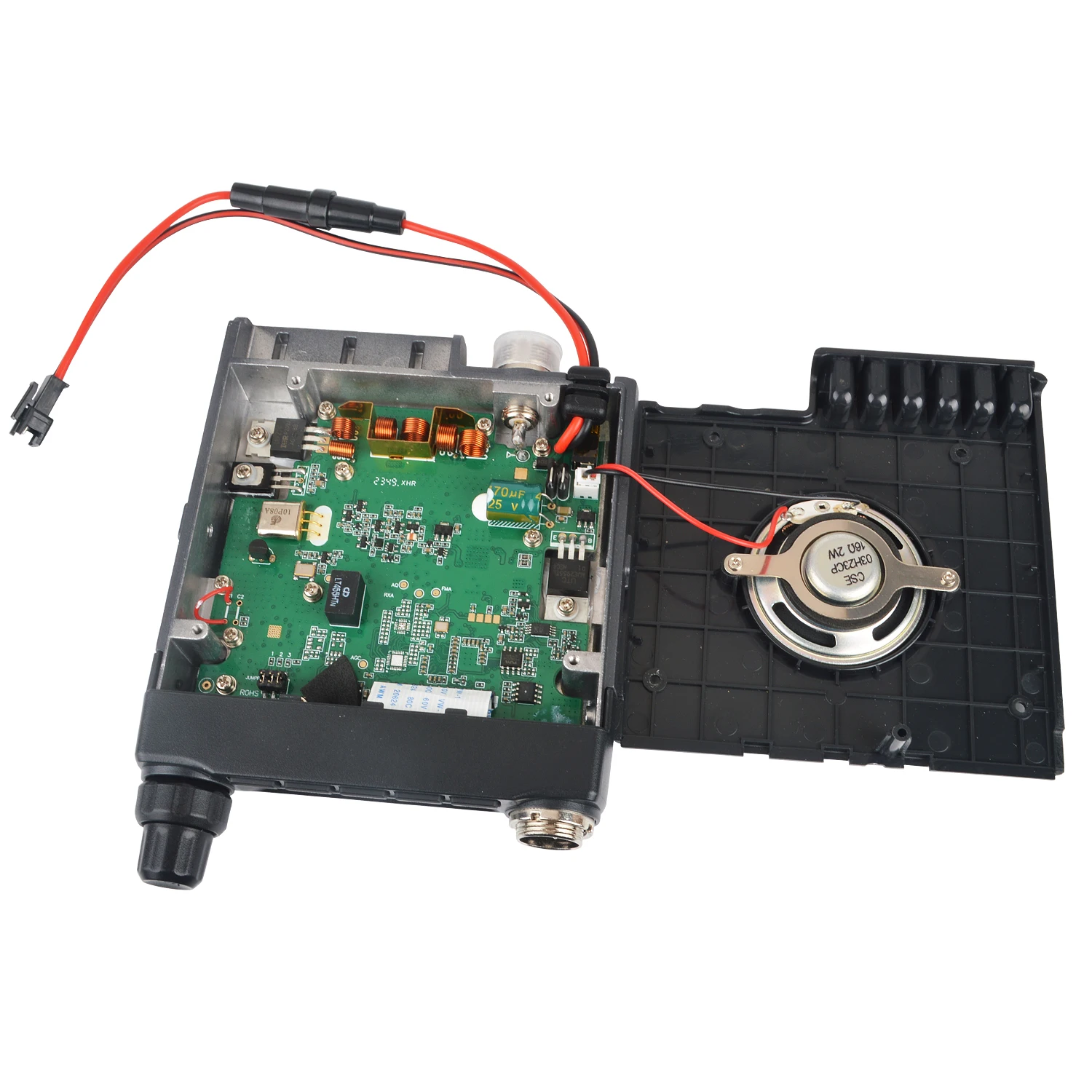

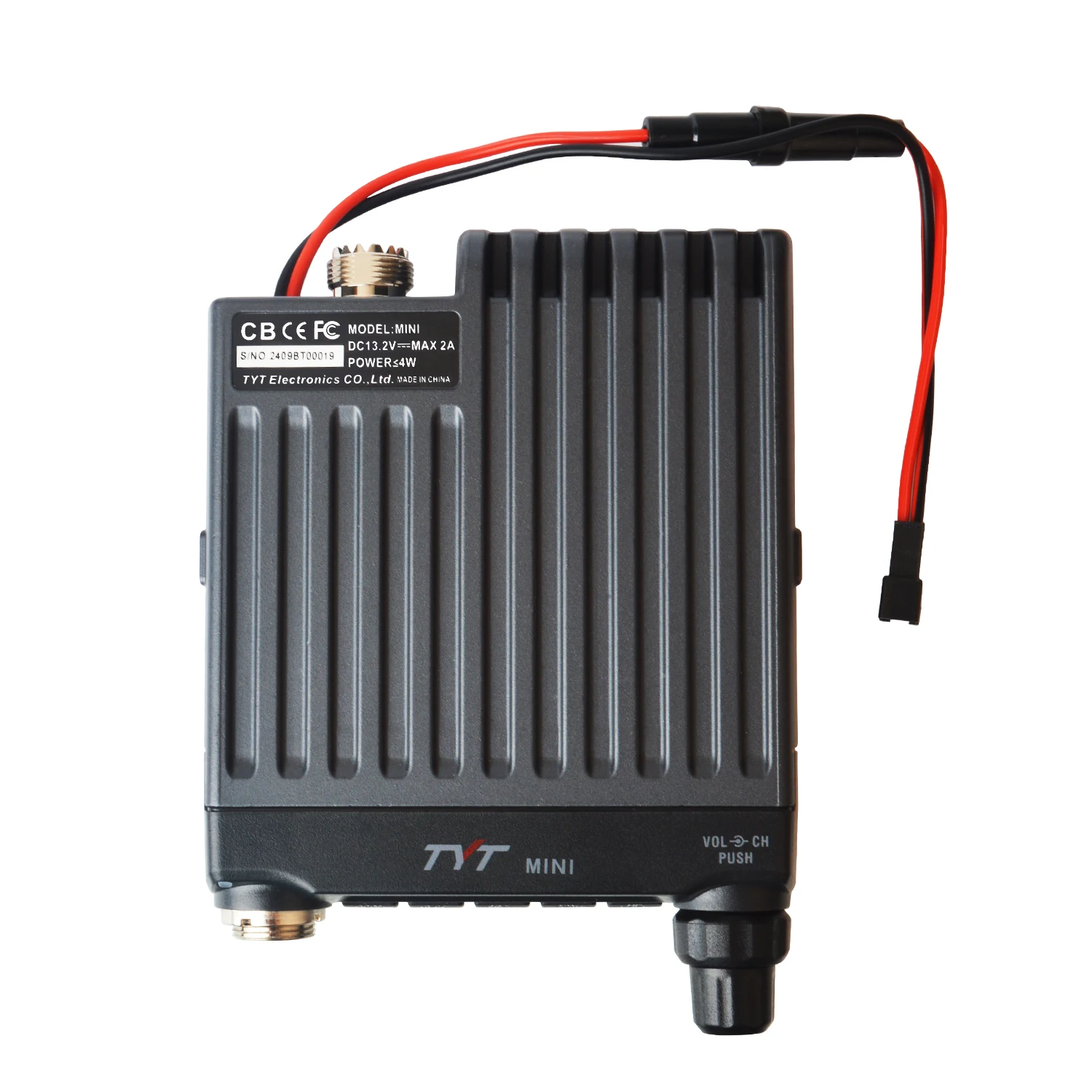

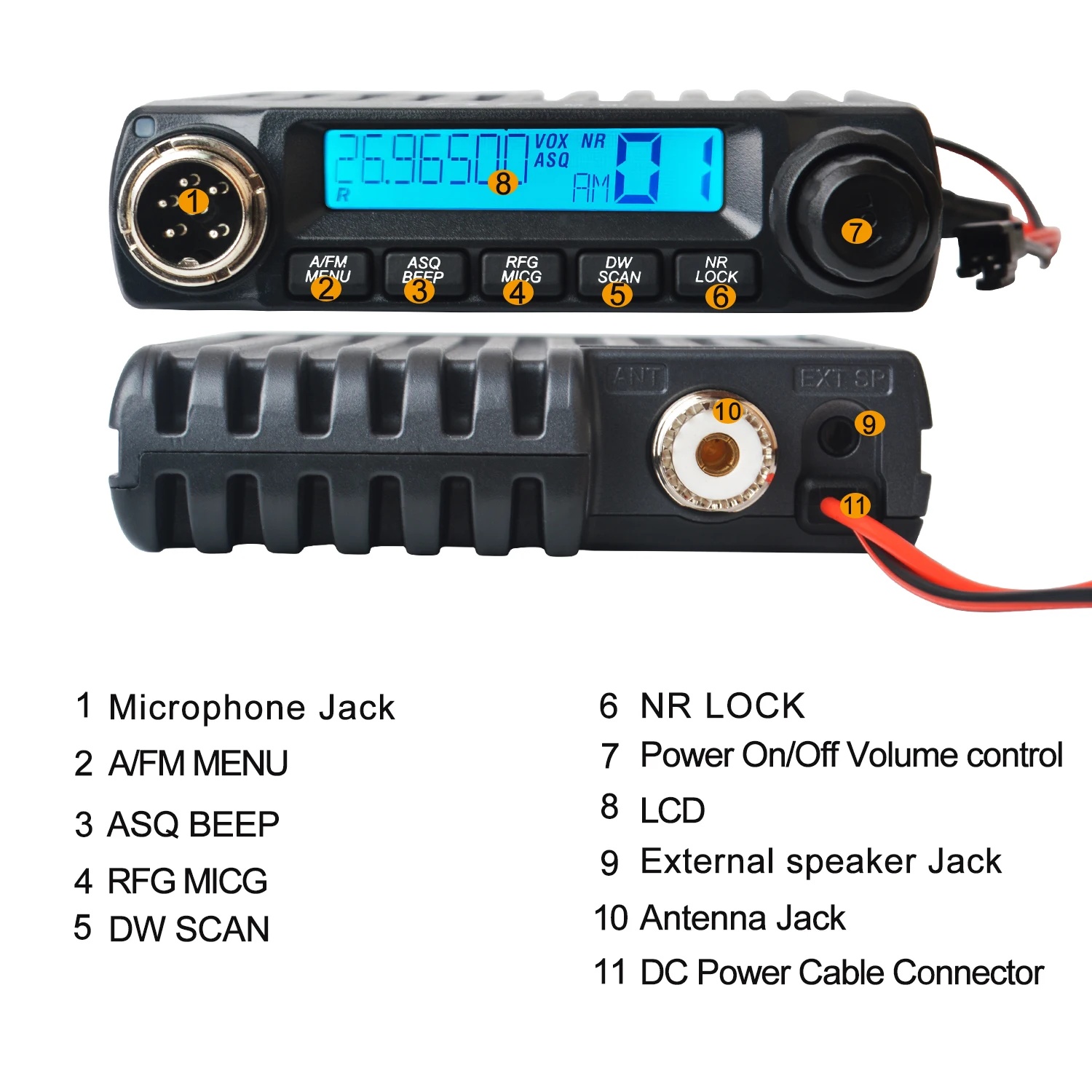

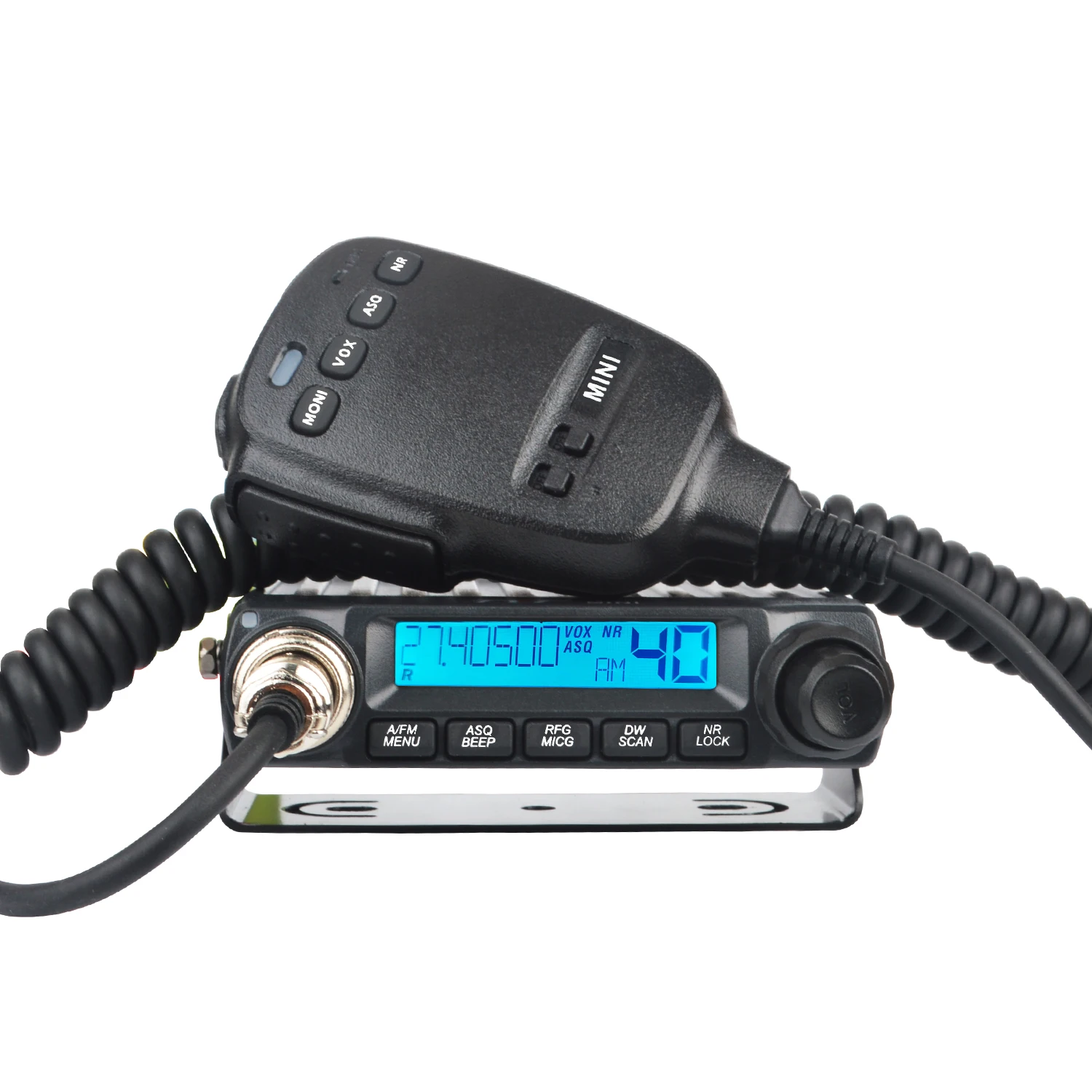

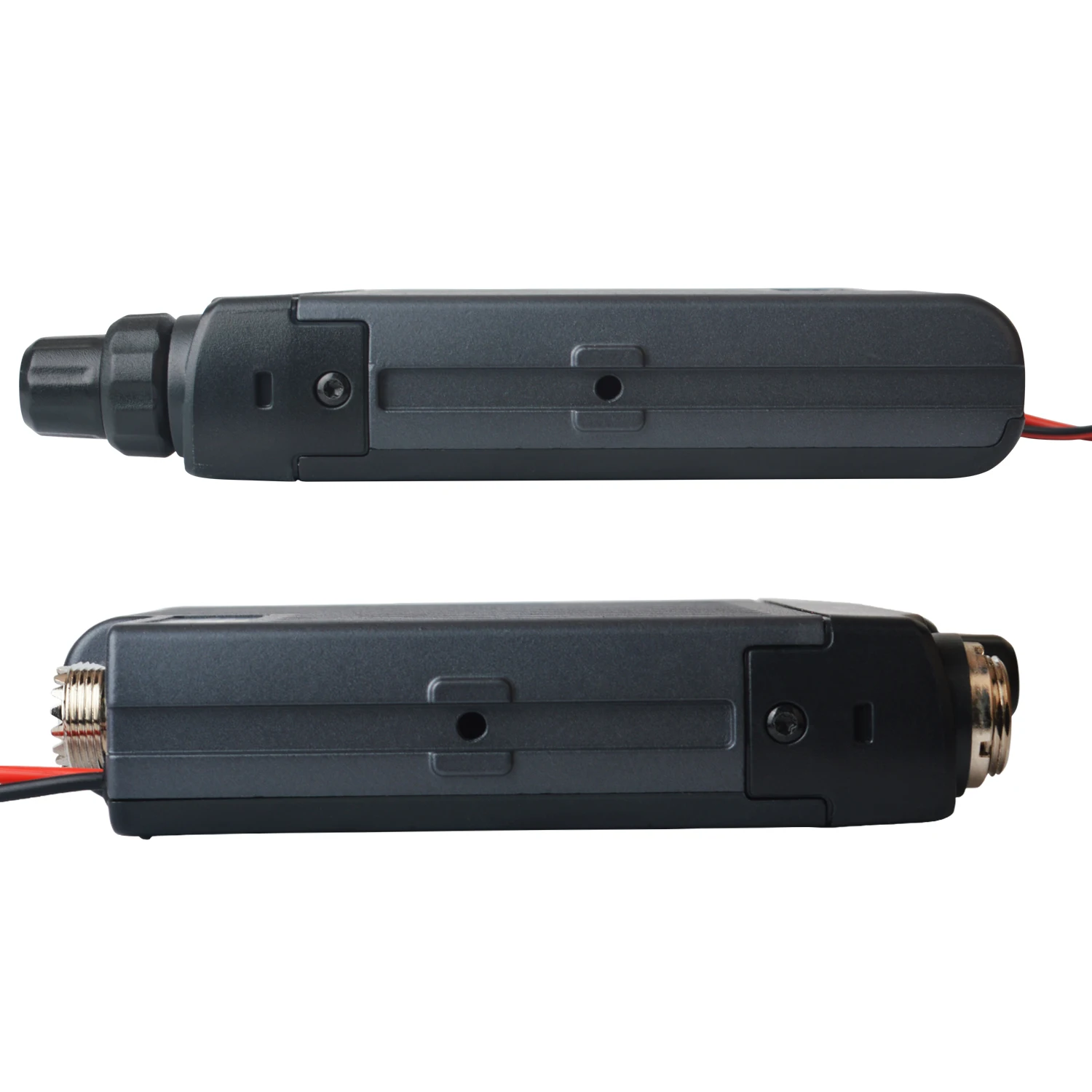

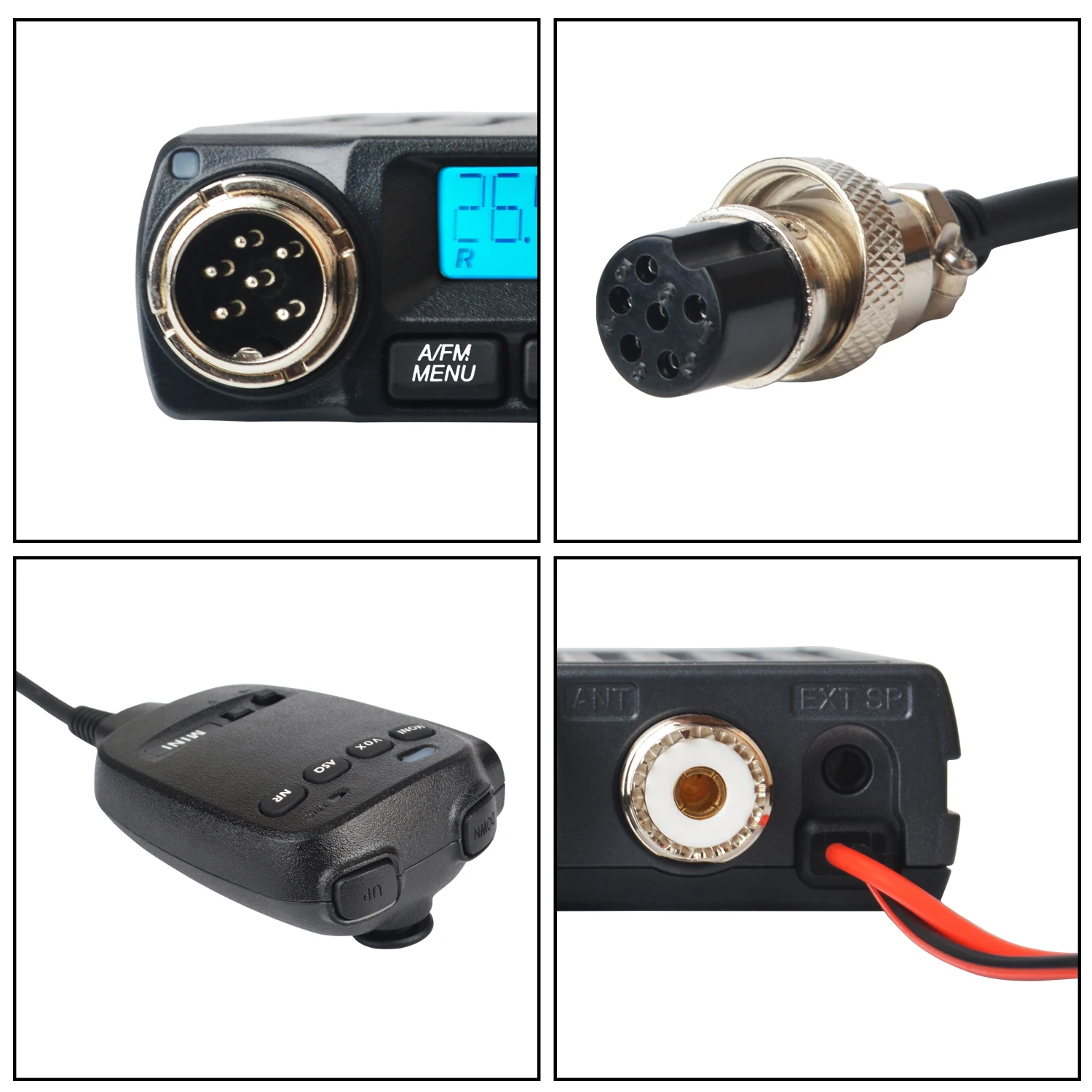

Photos:
Features:
compact mini Size, slim
350gram light weight radio body (microphone speaker not included)
Modulation Mode: FM/AM
Noise Reduce
Echo
RF Gain Adjustment
Mic Gain Adjustment
Backlight Brightness Adjustment
Beep Level Adjustment
Roger Beep
DW
SCAN
TOT
MUTE
ASQ/SQ Feature
VOX
Reset
Specifications:
|
General |
|
|
Frequency Range |
26.96500-27.40500MHz |
|
Frequency Band |
European CB Band (Citizen band) |
|
Channels |
40 channels |
|
Frequency Control |
Phase-locked-loop Synthesizer |
|
Frequency Tolerance |
±5.0ppm |
|
Temperature Range |
-20°c+50°c |
|
Microphone |
With push-to-talk UP/DN buttons and coiled cord |
|
Input Voltage |
13.8V |
|

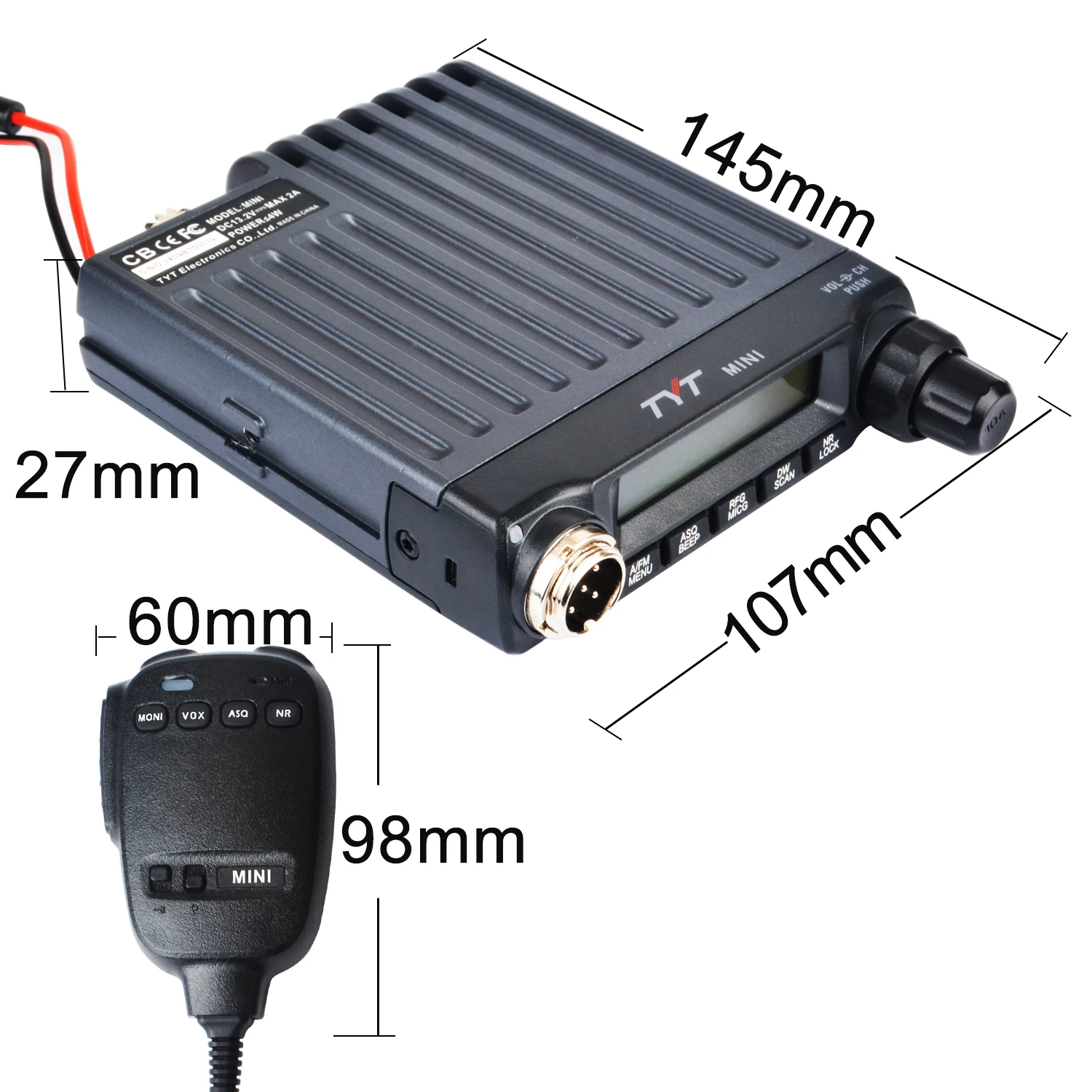

Dimensions |
145*107*27mm |
|
Weight |
350g (Radio body only, speaker microphone excluded) |
|
Antenna Connector |
UHF,SO239 |
|
Transmitter |
|
|
Power Output |
4W |
|
Current Drain |
Max.2A (With modulation) |
|
Modulation |
FM/AM |
|
Unwanted Sideband |
50dB |
|
Frequency Response |
AM/FM:450 to 2500Hz |
|
Receiver |
|
|
Sensitivity |
AM:1.0uV for 10dB (S+N)/N at greater than 1/2watt of audio output. FM:1.0uV for 20dB (S+N)N at greater than 1/2 watt of audio output. |
|
Selectivity |
AM/FM:6dB@3kHz,50dB@9kHz |
|
Adjacent-Channel Selectivity |
60dB AM/FM |
|
Image Rejection |
More than 65dB |
|
IF Frequency |
AM/FM:10.695MHz 1stIF,455KHz 2ndIF |
|
RF Gain Control |
45dB adjustable |
|
Automatic Gain Control (AGC) |
Less than 10dB change in audio output for inputs from 10uV to 100,000uV |
|
Squelch |
Adjustable,threshold less than 0.5uV. Automatic Squelch control (only AM/FM) 0.5uV |
|
Audio Output Power |
2w 16 ohms |
|
Frequency Response |
AM/FM:300 to 2800Hz |
Note: Specifications are subject to change without notice due to advancements in Technology.

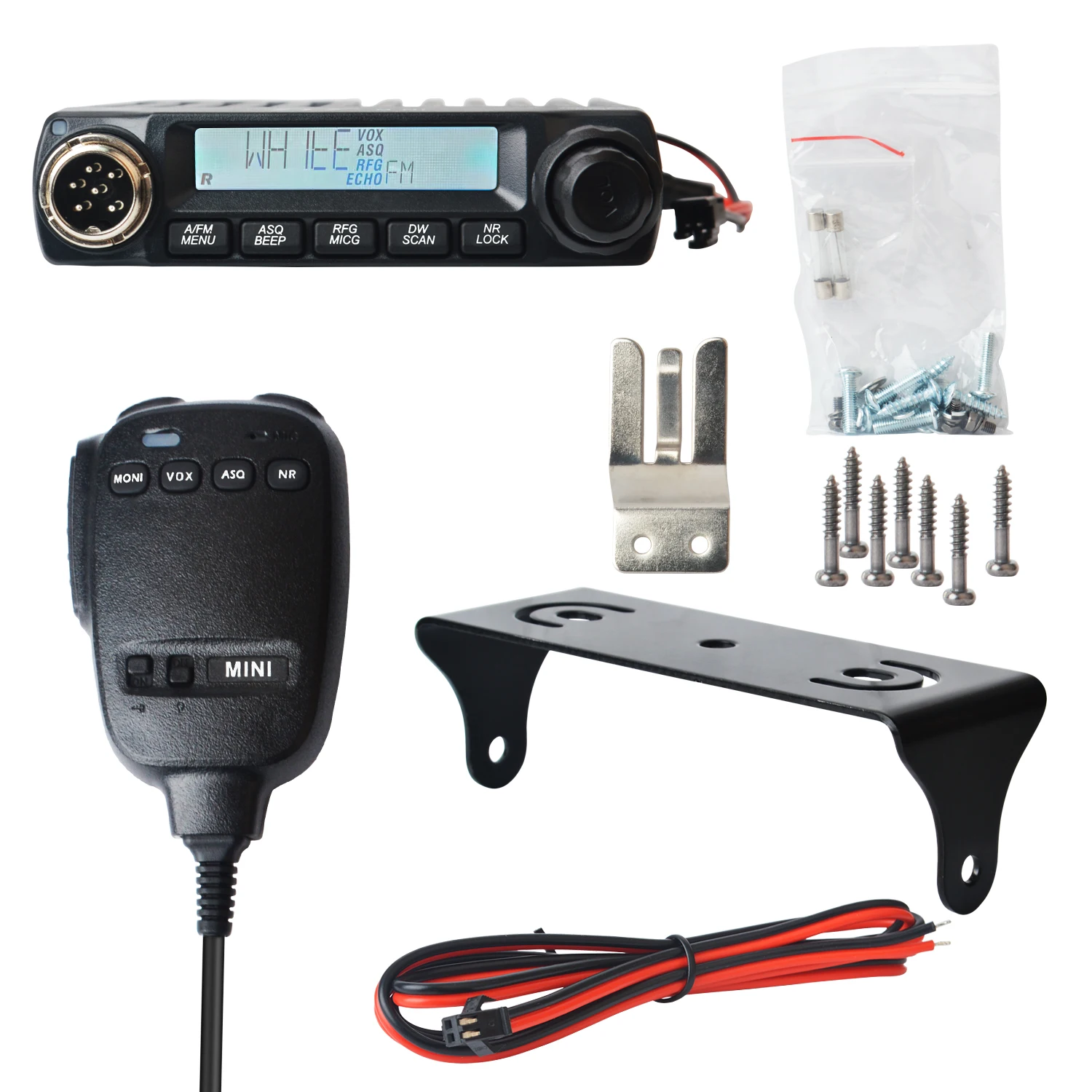

Package Contains:
1×TYT CB Mini Radio Body
1× Speaker Mic
1× Bracket
1× Power Cable
1× Screw Sets
1× Hook for Speaker Mic
2×Fuse
1×ENG Manual
